The UV Pro series of our company offers guaranteed disinfection by viruses, protozoa, germs, bacteria, legionella and others.

In collaboration with the world's largest lamp manufacturer, PHILIPS offers 100% pure water, from 21 lpm to 380 lpm.

The UV Veluda systems are widely used for water disinfection in water supply networks residential areas, swimming pools, spas, thalassotherapy and wellness centers, hotels, hospitals, schools, workshops, automatic water dispensers, municipal water treatment systems and aquariums.

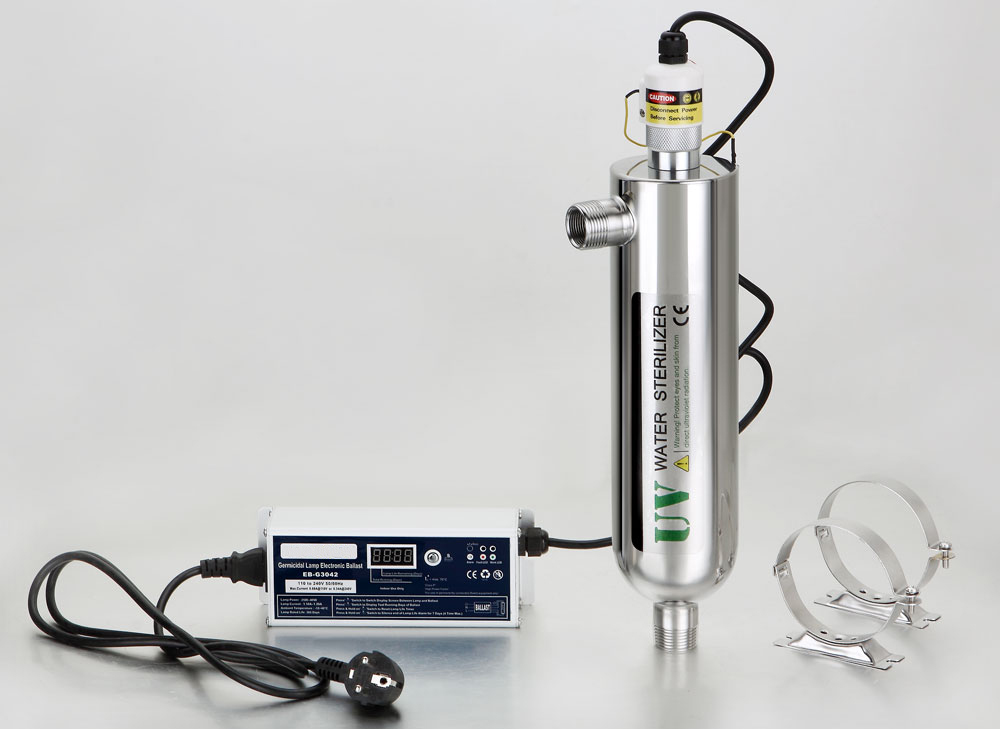

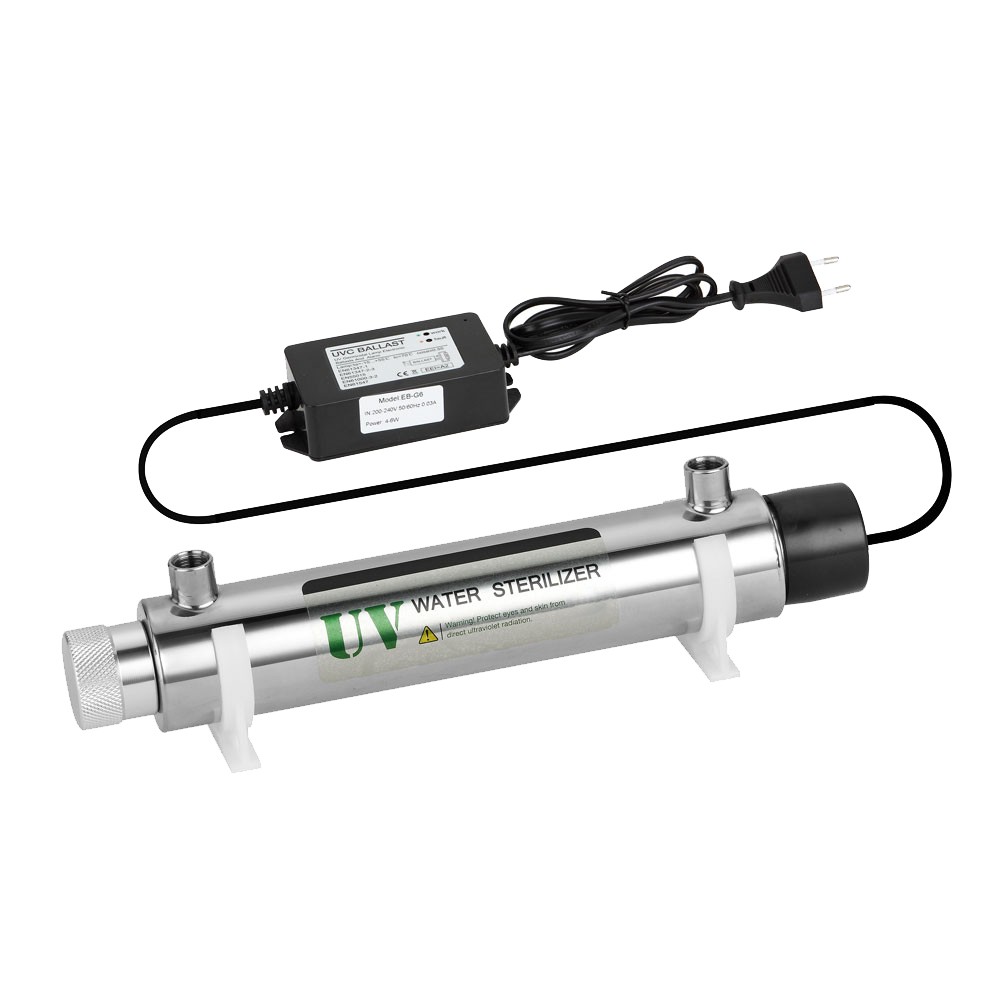

The UV-PRO 30-45 lpm lamp is made of 304 s.s. and the power supply provides constant current for maximum lamp output. It has furthermore audio visual alarm, proper index or non-operation of the lamp, starting with preheating and output protection and fault lamp. In addition, you can have a total daylight indicator on order, if required.

2 years warranty for the device and 12 months for the lamp.


Model No. UV - 030 UV - 055 UV Home - 30 W UV Home - 55 W
Water Flow 30 LPM 45 LPM 30 LPM 45 LPM
Dimensions Length 910 mm 950 mm 390 mm 390 mm
Diameter 63.5 mm 63.5 mm 89 mm 89 mm
Ballast 98 mm (L) * 58 mm (W) * 32 mm (H)
Packing Contents 1 Piece
Inlet / Outlet Port Size 3/4 “ male 3/4 “ male 1” male 1” male
Electrical Volts 100 - 240 V ( 50 - 60 Hz)
Power Consuption 39 W 72 W 46 W 65 W
Lamp Power 30 W 55 W 30 W 52 W
Ambient Temprature 2 - 40° C
Max Operating Pressure 10 Bar (145 PSI)
Audible Lamp Failure Yes
Visual "Power on" Yes
Reator Chamber Material SS304
Lamp Type Philips 2 PIN Amaglam UV lamp 4 PIN ( High output)
LAMP VUV - 055 55W 2PIN 0,77A (D28*L894,6mm) VUV - 055 55W 2PIN 0,77A (D28*L894,6mm) AMALGAM LAMP 30W 4PIN 1,2A 2m3(D19*L287mm) AMALGAM LAMP 55W 4 PIN 1,2A 4m3(D19*L436mm)
QUARTZ QUARTZ 30W (D34*L955mm) QUARTZ 55W (D34*L955mm) QUARTZ 30W
(For home 2m3)(D23*L322mm) 		QUARTZ 55W
(For home 4m3)(D23*L471mm)
BALLAST BALLAST 30W BALLAST 55W BALLAST WITH CONTROL
(For home 2m3) 		BALLAST WITH CONTROL
(For home 4m3)
